Structural Plywood for Construction Partition walls,Framing Walls and Roofs
Structural Plywood for Construction Partition walls,Framing Walls and Roofs

Structural Plywood for Construction Partition walls,Framing Walls and Roofs

Product Description

Applications:

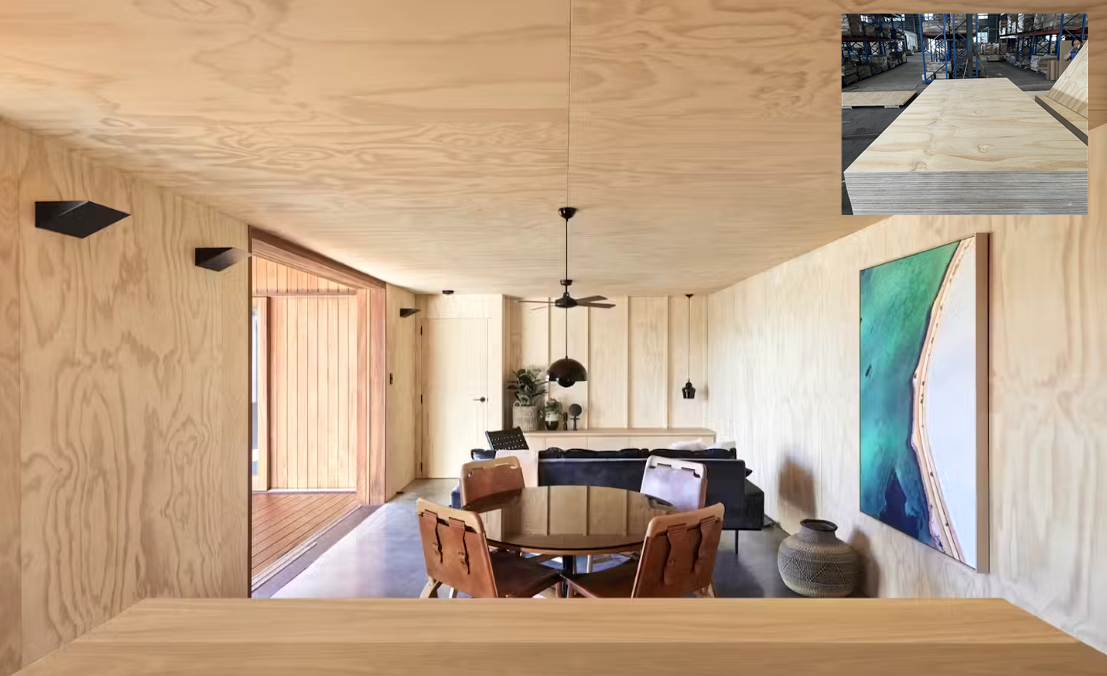

For Construction Partition walls,Framing Walls and Roofs

Brief  Introduction

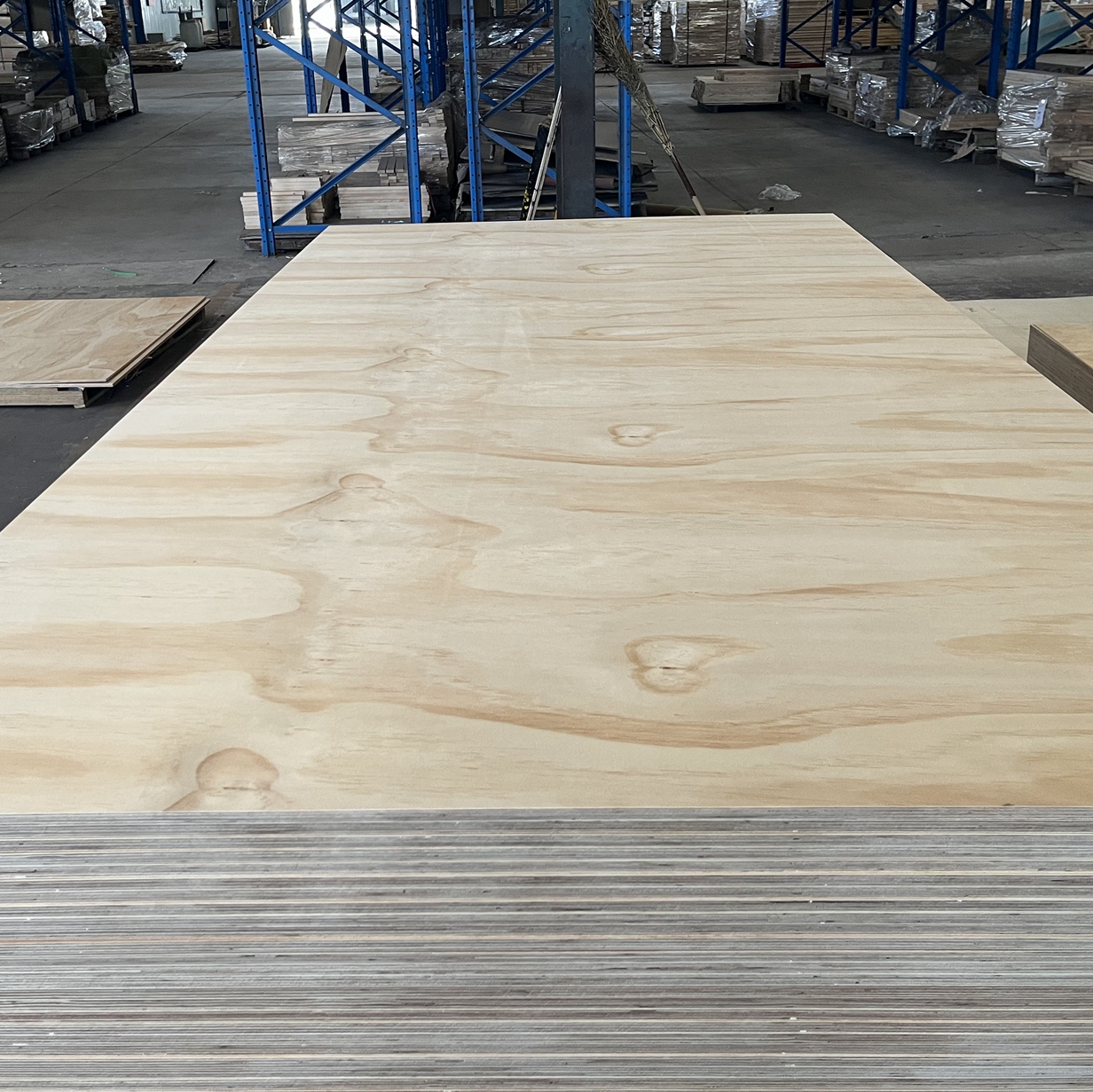

B/C Structural Plywood is a durable panel made from thick wood veneer glued together with strong adhesive. It's ideal for a range of structural applications, such as flooring, roofing, and wall sheathing.

B/C grade means that one side has a B grade face with natural blemishes, while the other has a C grade back with more noticeable knots. Both sides are suitable for structural use.

One of the key benefits of B/C Structural Plywood is its strength and resistance to wear and tear. The plywood's multi-layer construction provides added stability and resistance to warping and twisting. Additionally, the plywood's surface is smooth enough to accept paint and stain well, making it easy to customize for a variety of projects.

B/C Structural Plywood is easy to work with, cut, drilled, sanded with standard tools, and installed using common techniques. It's perfect for DIY projects and larger construction jobs. Overall, B/C Structural Plywood is a versatile, durable, and reliable panel that can meet the needs of professional builders and DIY enthusiasts alike.

Technical sheet

Specifications

The following specifications apply to all WP structural plyboard products:

Standard

AS/NZS2269 Structural Plywood

Stress Grade

F11 (F14 on request)

Timber Species

Radiata Pine (Pinus radiata)

Moisture Content

8-12

Tolerance

As per AS/NZS2269

Adhesive

14L962 Dynea Phenolic WBP Glue (AS2754.1)

Bond

Type A (AS/NZS2098.2)

Formaldehyde Emission

Super E0

Thermal Expansion

Average coefficient of thermal expansion for structural plywood is approximately 4.5 x 10-6 mm/mm/°C compared with 11 x 10-6mm/mm/°C for steel.

Certification

BENCHMARK CERTIFIED BY BSI AUSTRAILA



Strength characteristics

Thickness of plywood, mm

Bending strength, MPa, mean value

Modulus of Elasticity, MPa, mean value

perpendicular to the fiber

parallel to the fiber

perpendicular to the fiber

perpendicular to the fiber

6.5 60 85 4300 9500
9 65 85 5700 9000
12 60 80 6000 8500
15 60 80 6500 8500
18 75 70 7000 8500
19 70 70 7200 8000
21,24,27,30 70 70 7000 8000



DOP supports:

Radiata pine grade ranks

MSDS for Dynea phenolic WBP glue

AS-NZS 2269 test report

Formaldehyde emissions test report

H2,H3 treated test report



For more details,please send your requirements to us for professional wood plan.
